上文：SQL Server 2008中Service Broker基礎應用（上）、SQL Server 2008中Service Broker基礎應用（下）

　　演示了在同一個SQL Server實例的不同數據庫之間實現Service Broker，其實，更常見的是在不同的SQL Server實例之間進行通信，本文將通過實例演示如何進行Service Broker遠程通信。

　　以下是實現遠程Service Broker的基本步驟：

　　一、啟用傳輸安全

　　二、啟用對話安全

　　三、創建路由

　　四、創建遠程服務綁定

　　下圖顯示的是兩個 SQL Server 實例間的 Service Broker 網絡通信的高級視圖。

　　準備工作：

/************************************************************/
------遠程Service Broker
------ 3w@live.cn

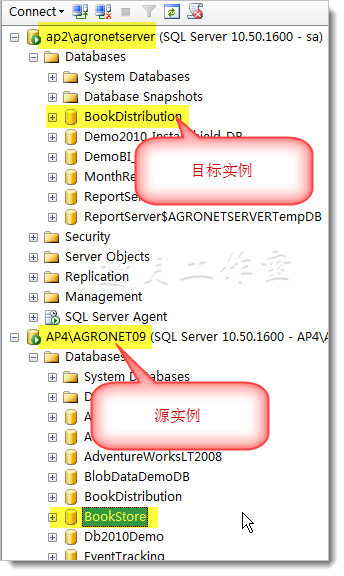

-----源服務器實例,在本例中為ap4/agroNET09
USE master
GO
-- Enable Service Broker for the database
ALTER DATABASE BookStore SET ENABLE_BROKER
GO
ALTER DATABASE BookStore SET TRUSTWORTHY ON
GO

USE BookStore
GO
-- Create the messages
CREATE MESSAGE TYPE [//SackConsulting/SendBookOrder]
VALIDATION = WELL_FORMED_XML
GO
CREATE MESSAGE TYPE [//SackConsulting/BookOrderReceived]
VALIDATION = WELL_FORMED_XML
GO

-- Create the contract
CREATE CONTRACT
[//SackConsulting/BookOrderContract]
( [//SackConsulting/SendBookOrder]
SENT BY INITIATOR,
[//SackConsulting/BookOrderReceived]
SENT BY TARGET
)
GO

-- Create the queue
CREATE QUEUE BookStoreQueue
WITH STATUS=ON
GO

-- Create the service
CREATE SERVICE [//SackConsulting/BookOrderService]
ON QUEUE dbo.BookStoreQueue
([//SackConsulting/BookOrderContract])
GO

-----目標服務器實例,在本例中為ap2/agroNETserver
USE master
GO
IF NOT EXISTS (SELECT name
FROM sys.databases
WHERE name = 'BookDistribution')
CREATE DATABASE BookDistribution
GO

-- Enable Service Broker for the database
ALTER DATABASE BookDistribution SET ENABLE_BROKER
GO
ALTER DATABASE BookDistribution SET TRUSTWORTHY ON
GO

USE BookDistribution
GO
-- Create the messages
CREATE MESSAGE TYPE [//SackConsulting/SendBookOrder]
VALIDATION = WELL_FORMED_XML
GO
CREATE MESSAGE TYPE [//SackConsulting/BookOrderReceived]
VALIDATION = WELL_FORMED_XML
GO

-- Create the contract
CREATE CONTRACT
[//SackConsulting/BookOrderContract]
( [//SackConsulting/SendBookOrder]
SENT BY INITIATOR,
[//SackConsulting/BookOrderReceived]
SENT BY TARGET
)
GO

-- Create the queue
CREATE QUEUE BookDistributionQueue
WITH STATUS=ON
GO

-- Create the service
CREATE SERVICE [//SackConsulting/BookDistributionService]
ON QUEUE dbo.BookDistributionQueue
([//SackConsulting/BookOrderContract])
GO
